Key Features

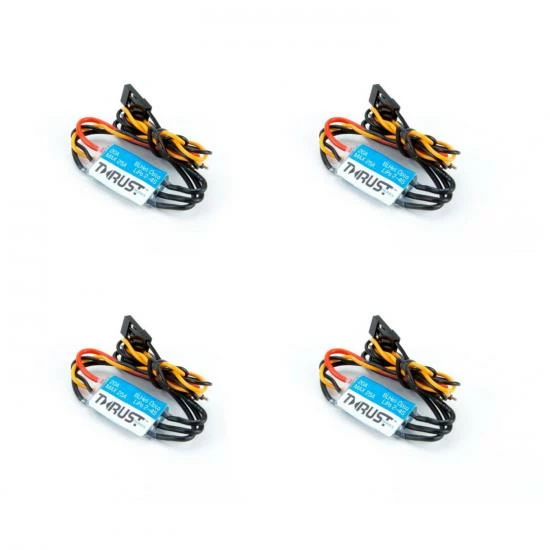

• 4 Pack of Thrust ESCs
• Pre-Flashed with BLHeli
• Active Dampening and One Shot activated
• 20A Continuous with 25A (10sec)burst
• Failsafe protection, over-heat protection and low voltage cutoff
• 2-4s battery, Opto (no bec)
• Only 6.8g each
• Signal Frequency: 20-500Hz
• PWM Frequency: 18KHz
• Size: 24.5 x 12.9 x 5.2mm

Compatible Products Blade 20A ESC BLHeli FPV Opto Quad Pack (4) BLHA1006 is compatible with BLH02000

20A ESC Brushless Heli Opto Quad Pack Specfications:

• BEC: : No
• Battery Input Lead: : 20 AWG
• Height: : 0.20 in (5.2mm)
• Input Voltage: : 9-17V (2-4S Battery, Opto, no BEC)
• Length: : 0.96 in (24.5mm)
• Maximum Burst Current: : 25A (10 seconds)
• Motor Output Lead: : 20 AWG
• Overload Protection: : Thermal
• PWM Frequency: : 18KHz
• Programmable: : No
• Sensored: : No
• Type: : 20A BLHeli Brushless ESC
• Weight: : 0.24 oz (6.8g)
• Width: : 0.51 in (12.9mm)

Spec

• Brand: Blade
• Part No: BLHA1006
• Barcode: 605482628966
• Fitment: Option Part
• Fitment: Standard Part
